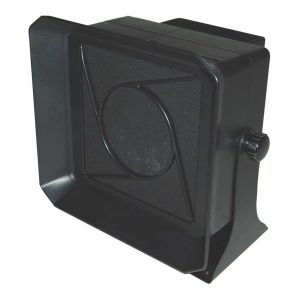

Xytronic 468ESD Benchtop Fume Extractor with Extra Filters

List price: $69.95
$57.95
You save: $12.00 (17%)
468ESD
+

The Xytronic 468ESD Fume Extractor is a cost-effective, mains-powered fume extraction unit for removing soldering fumes from the immediate vicinity of the operator. The Xytronic 468ESD Fume Extractor was developed with a high performance fan and an easy to replace activated carbon filter.

468ESD Xytronic Benchtop Fume Extractor

The Xytronic 468ESD Fume Extractor offers a convenient and space saving method of removing noxious fumes from the work environment. Designed for use on the factory floor, in R&D or by the hobbyist, this Xytronic 468ESD Fume Extractor provides an economical and efficient method to improve the work place by eliminating headaches, nausea and eye irritations often associated with exposure to solder fumes.

The soldering and welding fume extractor is for cleaning of both particles and gases. It is designed to filter the harmful substances, such as hydrocarbon and cyanide, during the process of soldering, tin dipping in the solder pot, laser marking and carving, printing, etc. It catches harmful smoke with freestanding ducts and has an adjustable air volume to significantly improve your working environment.

Xytronic 468ESD Fume Extractor Features

  • Built-in, replaceable, activated carbon filter helps to capture solid fume particles preventing them from being re-circulated in the air
  • Significantly reduces the likelihood of eye irritation, nausea, and respiratory tract problems
  • Adjustable tilting head
  • Recommended distance from soldering iron 120 to 150mm
  • Supplied complete with 3 filters and mains lead fitted with plug
  • Replacement filters are available in packs of 3 and should be changed when they have become discolored or when excessive dust has accumulated.
  • Xytronics recommends that you change your filter once a month if the unit is used 8 hours a day.
  • ESD safe and CE approved
  • 36 decibel rating

  • Purchase extra 76-3313010 Fume Extractor Filters

    Purchase a Xytronic 468ESD Fume Extractor sold by Howard Electronics Today!

    Dimensions:
    182x136x200mm (7.16 x 5.35 x 7.87in.)
    Vendors :
    Xytronic
    Available Voltage:
    100-120V @ 60Hz
    Weight:
    1168 Grams (2.6Lbs.)
    Air Volume Output:
    95/115 CFM
    76-3313010
    $9.37 $8.00

    Xytronic 76-3313010 Fume Extractor Filters 3/Pkg. These Xytronic 76-3313010 filters fit in the 426DLX, 468ESD, and the 456DLX.

    +

    468ESD Owner's Manual (468ESD_Manual.pdf, 1,479 Kb) [Download]
