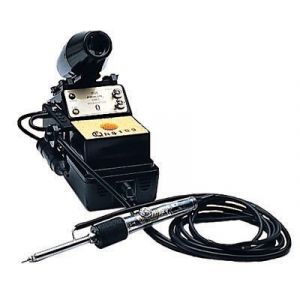

EDSYN 1036 SMD HOT AIR STATION

List price: $750.50
$650.00
You save: $100.50 (13%)
1036
+

LONER ATMOSCOPE Self-Contained SMT Hot Air Station with FA069 PS542 and PD525. This station is perfect for lab-type settings where shop air is not available. With a helpful variety of hot air tips at your disposal you will find soldering with this station a breeze.


Features and Benefits

  • Self-contained with built in air source
  • Zero crossing circuitry
  • Uses a wide variety of nozzle sizes
  • Expands to include optional soldering iron
  • 95 watt heater provides power for larger components
  • Most cost effective self-contained hot air station that EDSYN manufactures


Specifications for Model 1036
Power Requirements
Power Rating
Heater Rating
120V, 60Hz
150W
120V, 95W
Temperature Range400º F - 800ºF/205ºC - 427ºC
Temperature Regulation±6ºF/±3ºC
Tip to Ground Voltage
Leakage /Resistance
<2mv/<2ohms
Overall Dimension5.2"W x 8.5"H x 10"D
132mm x 216mm x 254mm
Weight
Power Supply
Hand Tool
PS542 4.3lbs/1.9kg
FA069 6oz/170g
Contents
PS542Power Supply
FA069Hot Air Hand Tool
PD525Tool Pod
SH230Sponge Holder with LN230 Liner
Accessory Kit includes:
WT620Tip Wrench, 1/4" socket
WT624Tip Wrench, Dual Open End, 1/4" & 5/16"
ST706SMD Tool to Lift off SMD's
RB641Shim Blade Replacement
WS630SMD Pull Wire with Low Static Spool -- 0.01" dia.(0.25mm) x 10' (3.08m)
AN122Anti-Seize Compound
Vendors :
Edsyn
