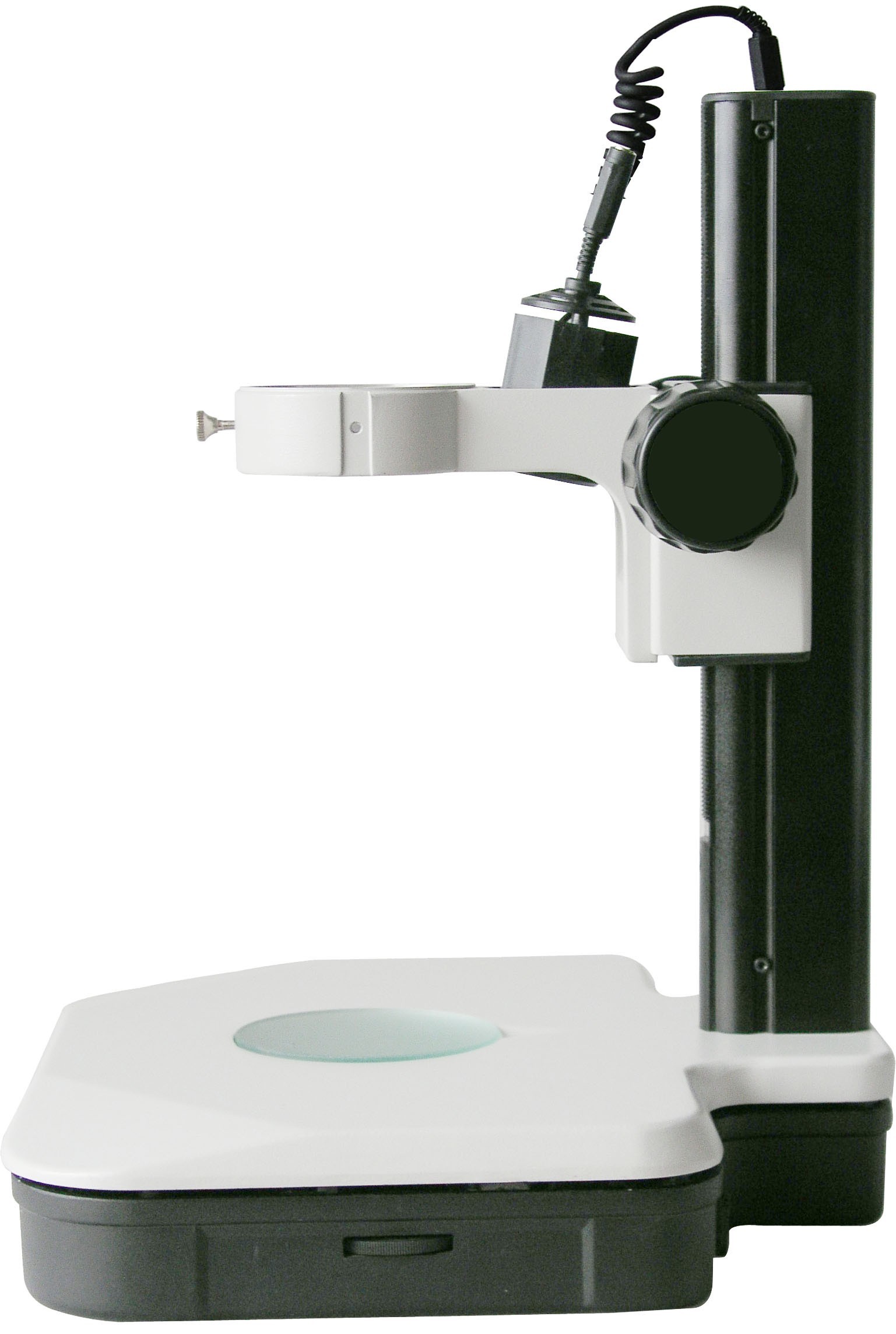

HEIScope ST02031204 85mm HF Dual Illuminated Track Stand. The HEIScope ST02031204 has a Top Halogen Spot Light and Bottom Fluorescent with 7.5" of Vertical Travel.
ST02031204 HEIScope 85mm Dual Illuminated Track Stand
ST02031204 HEIScope 85mm Track Stand scope holder, 12v 15w halogen bulb for top lighting, 9w 2u fluorescent lamp for bottom lighting. Ac 85-265v 5060hz. Travel distance 250mm, vertical length 325mm. The base size is 320×305×60mm, with a 95×6mm glass plate, applicable to sz and fs series microscope.
Warranty: 1 Year
ST02031204 HeiScope 85mm Dual Illuminated Track Stand Specifications
| Track Stand | Stand Type | Track Stand | |
| Holder Adapter Type | 85mm Scope Holder | ||
| Track Length | 325mm | ||
| Base Type | Illumination Base | ||
| Base Shape | Rectangle | ||
| Stand Throat Depth | 121mm | ||
| Base Dimensions | 320x305x60mm | ||
| Focus Mode | Manual | ||
| Focus Distance | 200mm | ||
| Coarse Focus Distance per Rotation | 23mm | ||
| Focusing Knob Tightness Adjustable | Tightness Adjustable | ||
| Illumination Type | HF Dual Illuminated Light | ||
| Top Illumination | Oblique Top Spot Light | ||
| Top Illumination Type | Halogen Light | ||
| Bottom Illumination Type | Fluorescent Light | ||
| Input Voltage | AC 90~265V 50/60Hz | ||
| Output Voltage | DC 12V | ||
| Output Power | 24W | ||
| Power Cord Connector Type | USA 3 Pins | ||
| Power Cable Length | 1.8m | ||
| Surface Treatment | Spray Paint | ||
| Material | Metal | ||
| Color | White | ||
| Net Weight | 5.37kg (11.84lbs) | ||
| Dimensions | 320x305x385mm (12.598x12.008x15.157″) |
| Microscope Plate | Black White Plate | Plate Type | Black White Plate |
| Plate Material | Plastic | ||
| Plate Size | Φ95x5mm | ||
| Color | Black,White | ||
| Net Weight | 0.04kg (0.09lbs) | ||
| Matte Finish Glass Plate | Plate Type | Matte Finish Glass Plate | |
| Plate Material | Matte Finish Glass | ||
| Plate Size | 95x5mm | ||
| Net Weight | 0.09kg (0.20lbs) |
| Aperture Diaphragm | Transmitted Illumination Iris | Aperture Diaphragm Mounting Position | Vertical Illuminator |
| Aperture Diaphragm Outer Dia. | Φ91mm | ||
| Surface Treatment | Electroplating Black | ||
| Material | Metal | ||
| Color | Black | ||
| Net Weight | 0.03kg (0.07lbs) | ||
| Applied To | SA0216 Series Illumination Bas |
