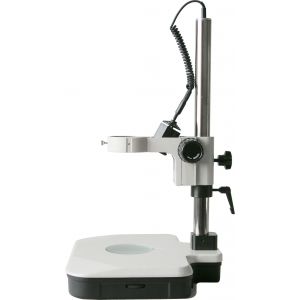

View Solutions ST02011204 Series HF Dual Illuminated Post Stand with 85mm Microscope Opening.
View Solutions ST02011204 85mm HF Dual Illuminated Post Stand
The View Solutions ST02011204 85mm Top Halogen Spot Light and Bottom Fluorescent Light Stand. The View Solutions ST02011204 has a 85mm Scope Holder. The View Solutions ST02011204 Vertical Post Height: 305mm. The View Solutions ST02011204 Base Dimensions: 320x305x60mm. The View Solutions ST02011204 HF Dual Illuminated Light. Top Illumination: Oblique Top Spot Light.
Warranty: 1 Year
View Solutions ST02011104 85mm Post Stand Specifications
| Post Stand | Stand Type | Post Stand | |
| Holder Adapter Type | 85mm Scope Holder | ||
| Vertical Post Height | 305mm | ||
| Maximum Vertical Post Extended Length | 150mm | ||
| Vertical Post Dia. | Φ32mm | ||
| Base Type | Illumination Base | ||
| Base Shape | Rectangle | ||
| Base Mounting Size | M29x1.5-6h | ||
| Base Dimensions | 320x305x60mm | ||
| Focus Mode | Manual | ||
| Focus Distance | 50mm | ||
| Coarse Focus Distance per Rotation | 21mm | ||
| Focusing Knob Tightness Adjustable | Tightness Adjustable | ||
| Center Distance from the Hole to the Scope Holder | 150mm | ||
| Illumination Type | HF Dual Illuminated Light | ||
| Top Illumination | Oblique Top Spot Light | ||
| Top Illumination Type | Halogen Light | ||
| Bottom Illumination Type | Fluorescent Light | ||
| Input Voltage | AC 90~265V 50/60Hz | ||
| Output Voltage | DC 12V | ||
| Output Power | 24W | ||
| Power Cord Connector Type | USA 3 Pins | ||
| Power Cable Length | 1.8m | ||
| Surface Treatment | Spray Paint | ||
| Material | Metal | ||
| Color | White | ||
| Net Weight | 5.36kg (11.82lbs) | ||
| Dimensions | 320x305x518mm (12.598x12.008x20.394″) |
| Microscope Plate | Black White Plate | Plate Type | Black White Plate |
| Plate Material | Plastic | ||
| Plate Size | Φ95x5mm | ||
| Color | Black,White | ||
| Net Weight | 0.04kg (0.09lbs) | ||
| Matte Finish Glass Plate | Plate Type | Matte Finish Glass Plate | |
| Plate Material | Matte Finish Glass | ||
| Plate Size | Φ95x5mm | ||
| Net Weight | 0.09kg (0.20lbs) |
| Aperture Diaphragm | Transmitted Illumination Iris | Aperture Diaphragm Mounting Position | Vertical Illuminator |
| Aperture Diaphragm Outer Dia. | 91mm | ||
| Surface Treatment | Electroplating Black | ||
| Material | Metal | ||
| Color | Black | ||
| Net Weight | 0.03kg (0.07lbs) | ||
| Applied To | SA0216 Series Illumination Base |
Purchase a View Solutions ST02011204 85mm Dual Illuminated Post Stand sold by Howard Electronics Today!
