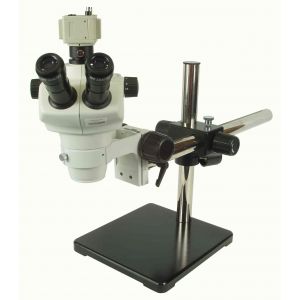

HEIScope's HEI-SZII-USB True Trinocular System includes: HEI-UCM-1300 2.0 Mega Pixel Color CMOS USB2.0 High Resolution (1280x1024) Camera with Digital Imaging and Measurement Software, and a Built in 0.4x Video Coupler.
Optical Data:
| Auxiliary Lens | Working Distance (mm) | Eyepieces | |||||||
| 10X (Φ22mm) | 15X (Φ16mm) | 20X (Φ12.5mm) | 30X (Φ7mm) | ||||||
| Mag. | FOV (mm) | Mag. | FOV (mm) | Mag. | FOV (mm) | Mag. | FOV (mm) | ||
| 1X | 115 | 8~50x | 27.5~4.4 | 12~75x | 20~3.2 | 16~100x | 15.6~2.5 | 24~150x | 8.8~1.4 |
| 0.5X | 211 | 4~25x | 55~8.8 | 6~37.5x | 40~6.4 | 8~50x | 31.2~5 | 12~75x | 17.6~2.8 |
| 2X | 43.5 | 16~100x | 13.8~2.2 | 24~150x | 10~1.6 | 32~200x | 7.8~1.3 | 48~300x | 4.4~0.7 |
