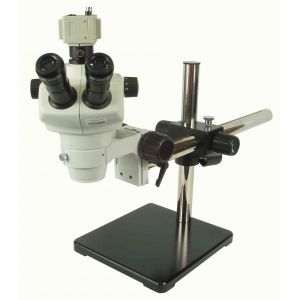

HEIScope's HEI-SZII-CCD True Trinocular System includes: HEI-CCD-13 Color CCD 1/3 Camera with Digital Signal Processing with 480 TV lines of Resolution, BNC Video Cable and 12v Power Supply on a Boom Stand with fiber optic illuminator and dual pipe light, and a Built in 0.4x Video Coupler.
Stereo image with longer depth of field & higher resolution
Zoom magnification: 8X-50X, zoom ratio 1:6.3
Zooming knob: with click-stops
Eyepieces inclination at 45º
Interpupillary distance: 52mm-75mm
Diopter: ±5 Diopter
Working distance: 115mm (1x)
Video Image Port: True Trinocular, built in 0.4x video coupler
Airtight: anti dust, oil & drops of water or other contaminants, working in a humid & sweltering situation
Can be used for teaching, scientific research, electronic testing and more
Optical Data:
| Auxiliary Lens | Working Distance (mm) | Eyepieces | |||||||
| 10X (Φ22mm) | 15X (Φ16mm) | 20X (Φ12.5mm) | 30X (Φ7mm) | ||||||
| Mag. | FOV (mm) | Mag. | FOV (mm) | Mag. | FOV (mm) | Mag. | FOV (mm) | ||
| 1X | 115 | 8~50x | 27.5~4.4 | 12~75x | 20~3.2 | 16~100x | 15.6~2.5 | 24~150x | 8.8~1.4 |
| 0.5X | 211 | 4~25x | 55~8.8 | 6~37.5x | 40~6.4 | 8~50x | 31.2~5 | 12~75x | 17.6~2.8 |
| 2X | 43.5 | 16~100x | 13.8~2.2 | 24~150x | 10~1.6 | 32~200x | 7.8~1.3 | 48~300x | 4.4~0.7 |
