HEI-MP6-DP HEIScope Stereo Zoom Trinocular Microscope Package

HEIScope
List price: $2,697.69
$1,764.00
You save: $933.69 (35%)
HEI-MP6-DP
+ −
Add to wish list Add to comparison list

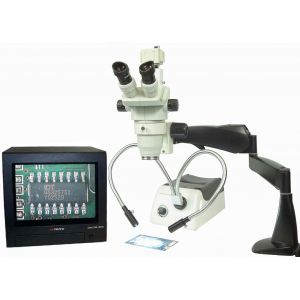

HEI Stereo Zoom Trinocular, 10x eyepieces, eye guards, 0.5x auxiliary lens, hydraulic articulating arm with 76mm focus rack, 0.5x auxiliary lens, 0.5x video coupler, 1/3" CCD color camera, fiber optic illuminator, dual pipe light guide and ESD safe microscope cover. Zoom Range of 3.4x - 22.5x with WD of 7" - Magnification on video: depends on PC monitor size.

  • HEI Stereo Zoom Microscope (w/10x eyepieces and ring light adapter) Standard 6.7x-45x magnification
  • 1/3" CCD Color Camera with B&C Cable (480 TV Lines)
  • Pneumatic Arm with Table Clamp
  • 150 Watt Fiber Optic Illuminator with Dual Pipe Light Guide
  • 0.5 Auxiliary Lens (for reducing magnification to 3.4x - 22.5x)
  • 0.5x video coupler, 1/3" CCD color camera
  • Color Monitor Not Included
  • 5 year warranty!

    • Total magnification = auxiliary lens x objective x eyepieces

    Specs

    		OpticalVideo
    Magnification
    Ring Adapter6.7x - 45x20x - 135x
    0.5x lens3.4x - 22.5x10x - 68x
    Field of View
    Ring Adapter32.8mm - 4.9mm18mm - 2.6mm
    0.5x lens65.7mm - 9.8mm36mm - 5.2mm
    Working Distance
    ring adapter100mm100mm
    0.5x lens177mm177mm

    Optical Specifications:

    Objective0.3X0.4X

    0.5X

    		0.75X1X1.5X2.0X
    Working Distance (mm)287mm

    217mm

    177mm

    117mm

    100mm

    47mm

    26mm

    10X Mag.2.0x-13.5x2.7x-18.0x3.4x-22.5x5.0x-33.8x6.7x-45.0x10.1x-67.5x

    13.4x-90.0x

    FOV 109.5-16.382.1-12.265.7-9.8

    43.8-6.5

    32.8-4.9

    21.9-3.3

    16.4-2.4

    15X Mag.

    3.0x-20.3x

    		4.0x-27.0x

    5.0x-33.8x

    		7.5x-50.6x10.1x-67.5x15.1x-101.3x20.1x-135x
    FOV 79.6-11.9

    59.7-8.9

    47.8-7.1

    31.8-4.7

    23.9-3.6

    15.9-2.4

    11.9-1.8

    20X Mag.

    4.0x-27.0x

    5.4x-36.0x

    6.7x-45.0x

    10.1x-67.5x

    13.4x-90.0x

    20.1x-135.0x

    26.8x-180x

    FOV 59.7-8.944.8-6.735.8-5.323.9-3.617.9-2.711.9-1.89-1.3
    25X Mag.5.0x-33.8x6.7x-45.0x8.4x-56.3x12.6x-84.4x16.8-112.5x25.1x-168.8x33.5x-225x
    FOV 44.8-6.733.6-5.026.9-4.017.9-2.713.4-2.09.0-1.36.7-1.0
    30X Mag.6x-40.5x8x-54x10x-67.5x15x-101x20x-135x30x-202x40x-270x
    FOV 34.8-5.126.1-3.8720.9-3.113.9-2.110.4-1.556.9-15.2-7.5
