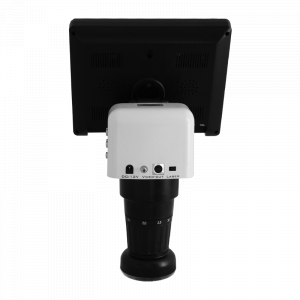

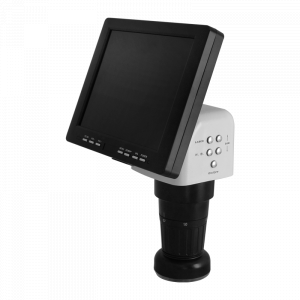

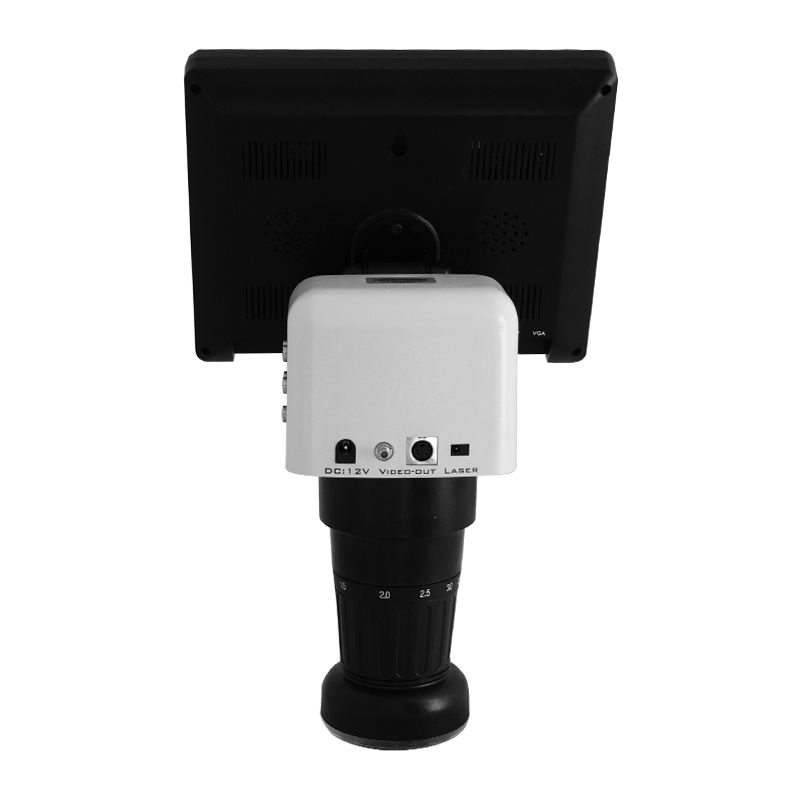

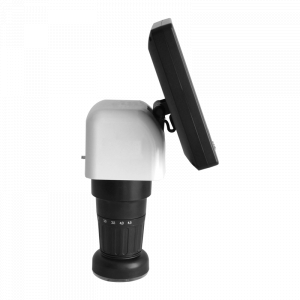

View Solutions MV02011111 8" LCD Zoom Inspection Microscope

View Solutions
List price: $1,886.95
$1,643.00
You save: $243.95 (13%)
MV02011111
+ −
Add to wish list Add to comparison list

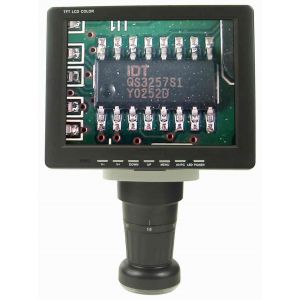

View Solutions MV02011111 High Resolution LCD Zoom Inspection System Microscope includes a Video Zoom microscope with a 8" viewable monitor.

View Solutions MV02011111 8" LCD Zoom Inspection Microscope

View Solutions MV02011111 High Resolution LCD Zoom Inspection Microscope System includes a Video Zoom microscope with a 8" viewable monitor (Native resolution: 800 × 600). Dot pitch: 0.297mm, Contrast: 300:1, Viewing Angle: about 150°, Response Time: ≤25ms, Brightness: 250cd/m2, Video Output: BNC (PAL / NTSC). Total magnification. ( 8" = 3.3x - 147x). The HEIScope HEI-VM-BS has a zoom body of 0.7-4.5x with detents with a zoom ratio of 1:6.5. Optional objective lens are available. Built in LED ring light with adjustable brightness and laser pointer for accurate inspection of small parts.

  • View Solutions MV02011111 LCD Video Microscope (Total magnification: (8" LCD 3.3x - 147x)
  • 8" Viewable LCD Monitor (16MS high definition color)

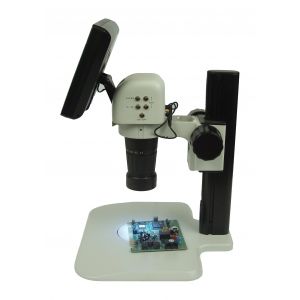

  • Purchase in Packages with selected stand.
  • LED ring light: DC 12V, 0.5mA with adjustable brightness
  • Viewing Angle: about 150° (Adjustable)
  • Optional objective lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X
  • Video Output: BNC (PAL / NTSC)
  • Laser pointer: DC 5V
  • Used for teaching, scientific research, electronic testing and more.
  • One year optics warranty - One year on Monitor.
  • Power Supply: AC 85-265V, 50/60Hz

View Solutions MV02011111 8" LCD Microscope Body Monitor Specifications

Viewable: 8" Viewing Angle: about 150°
800 x 600 8" inch monitor Response Time:≤25ms
Dot pitch: 0.297mm Brightness: 300cd/m 2 for 10 inch monitor
Contrast: 350:1 for 8 inch monitor Video Output: BNC (PAL / NTSC)

View Solutions MV02011111 8" LCD Microscope Body Optic Specifications
Laser pointer: DC 5V
Body size: 76mm, suitable for all microscope stands, boom stands and flexible arm stands.
Power supply: 85-265V, 50/60Hz

View Solutions MV02011111 8" LCD Microscope Body Accessories

Optional illuminator is available
Laser pointer: DC 5V
Body size: 76mm, suitable for all microscope stands, boom stands and flexible arm stands.
Power supply: 85-265V, 50/60Hz

View Solutions MV02011111 8" LCD Microscope Body Auxiliary Lens Magnification

HEIScope HEI-VM-BS Zoom Range Magnification with 8 inch Monitor W.D.(mm)
0.7 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5
0.3x 4.6x 6.3x 9.5x 12.7x 15.8x 19.0x 22.2x 25.3x 29.7x 331
0.5x 7.7x 10.6x 15.9x 21.1x 26.4x 31.7x 37.0x 42.2x 49.5x 198
0.75x 11.6x 15.8x 23.8x 31.7x 39.6 47.5x 55.4x 63.3x 74.3x 131
1.0x Standard 15.4x 21.1x 31.7x 42.2x 52.8x 63.3x 73.9x 84.4x 99.1x 96
1.5x 23.1x 31.7x 47.6x 63.3x 79.2x 95.0x 110.9x 126.6x 148.6x 63
2.0x 30.8x 42.2x 63.4x 84.4x 105.6x 126.6x 147.8x 168.8x 198.1x 46

View Solutions MV02011111 8" LCD Microscope Body Optical Data

Coupler

0.5x

Auxiliary Lens Magnification FOV mm Working Distance
0.3x 3.3x~22x 58.8~8.9 331mm (13")
0.5x 6x~37x 35.2~5.3 198mm (7.8")
0.75x 8x~55x 23.5~3.6 131mm (5.15")
1.0x 11x~74x 17.6~2.7 96mm (3.8")
1.5x 17x~110x 11.8~1.8 63mm (2.5")
2.0x 22x~147x 8.8~1.3 46mm (1.8")

Purchase a View Solutions MV02011111 8" LCD Microscope Body sold by Howard Electronics Today!

Part No.:
MV02011111
Vendors :
View Solutions

LCD Manual (vm-lcd-manual.pdf, 415 Kb) [Download]
