HEI-VM-HA-10 HEIScope 10.4" LCD Microscope Inspection System with Pneumatic Arm

HEIScope
List price: $2,708.21
$2,295.00
You save: $413.21 (15%)
HEI-VM-HA-10
+ −
Add to wish list Add to comparison list

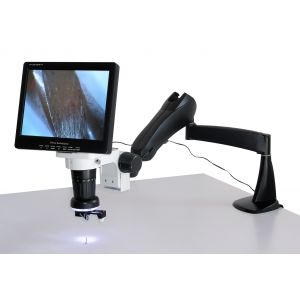

HEIScope HEI-VM-HA-10 High Resolution LCD Zoom Inspection System Microscope includes a Video Zoom microscope with a 10" viewable monitor on a HEI-HA-TC Pneumatic Stand.

HEIScope HEI-VM-HA-10 LCD Zoom Inspection Microscope

HEIScope HEI-VM-HA-10 High Resolution LCD Zoom Inspection Microscope System includes a Video Zoom microscope with a 10" viewable monitor(Native resolution: 1024 × 768). Dot pitch: 0.297mm, Contrast: 300:1, Viewing Angle: about 150°, Response Time: ≤25ms, Brightness: 250cd/m2, Video Output: BNC (PAL / NTSC). Total magnification. ( 10" = 3.2x - 198x). The HEIScope HEI-VM-HA-10 has a zoom body of 0.7-4.5x with detents with a zoom ratio of 1:6.5. Optional objective lens are available. Built in LED ring light with adjustable brightness and laser pointer for accurate inspection of small parts.

  • HEIScope HEI-VM-HA-10 LCD Video Microscope (Total magnification: (10" LCD 3.2x - 198x)
  • 10.4" Viewable LCD Monitor (16MS high definition color)
  • Purchase in Packages with selected stand.
  • LED ring light: DC 12V, 0.5mA with adjustable brightness
  • Viewing Angle: about 150° (Adjustable)
  • Optional objective lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X
  • Video Output: BNC (PAL / NTSC)
  • Laser pointer: DC 5V
  • Used for teaching, scientific research, electronic testing and more.
  • One year optics warranty - One year on Monitor.
  • Power Supply: AC 85-265V, 50/60Hz
In This Package:
MV02011121 LCD 10" Zoom Inspection Microscope
ST02071502 Pneumatic Articulating Arm with 76mm

HEIScope HEI-VM-HA-10 LCD Monitor Specifications

Viewable: 10.4" Viewing Angle: about 150°
1024 x 768 for 10.4 inch monitor Response Time:≤25ms
Dot pitch: 0.297mm Brightness: 300cd/m 2 for 10 inch monitor
Contrast: 350:1 for 10 inch monitor Video Output: BNC (PAL / NTSC)

HEIScope HEI-VM-HA-10 LCD Microscope Optic Specifications

Laser pointer: DC 5V
Body size: 76mm, suitable for all microscope stands, boom stands and flexible arm stands.
Power supply: 85-265V, 50/60Hz

HEIScope HEI-VM-HA-10 LCD Microscope Accessories

Optional illuminator is available
Laser pointer: DC 5V
Body size: 76mm, suitable for all microscope stands, boom stands and flexible arm stands.
Power supply: 85-265V, 50/60Hz

HEIScope HEI-VM-HA-10 LCD Microscope Auxiliary Lens Magnification

HEIScope HEI-VM-TS-10 Zoom Range Magnification with 10 inch Monitor W.D.(mm)
0.7 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5
0.3x 4.6x 6.3x 9.5x 12.7x 15.8x 19.0x 22.2x 25.3x 29.7x 331
0.5x 7.7x 10.6x 15.9x 21.1x 26.4x 31.7x 37.0x 42.2x 49.5x 198
0.75x 11.6x 15.8x 23.8x 31.7x 39.6 47.5x 55.4x 63.3x 74.3x 131
1.0x Standard 15.4x 21.1x 31.7x 42.2x 52.8x 63.3x 73.9x 84.4x 99.1x 96
1.5x 23.1x 31.7x 47.6x 63.3x 79.2x 95.0x 110.9x 126.6x 148.6x 63
2.0x 30.8x 42.2x 63.4x 84.4x 105.6x 126.6x 147.8x 168.8x 198.1x 46

HEIScope HEI-VM-HA-10 LCD Microscope Optical Data

Coupler

0.5x
Auxiliary Lens  Magnification FOV mm Working Distance
0.3x 3.3x~22x 58.8~8.9 331mm (13")
0.5x 6x~37x 35.2~5.3 198mm (7.8")
0.75x 8x~55x 23.5~3.6 131mm (5.15")
1.0x 11x~74x 17.6~2.7 96mm (3.8")
1.5x 17x~110x 11.8~1.8 63mm (2.5")
2.0x 22x~147x 8.8~1.3 46mm (1.8")
