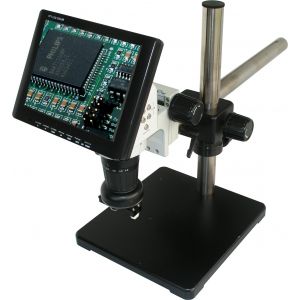

HEIScope HEI-VM-BS-10 High Resolution LCD Zoom Inspection System Microscope includes a Video Zoom microscope with a 10" viewable monitor on a HEI-BS-SB Boom Stand.
HEIScope HEI-VM-BS-10 LCD Zoom Inspection Microscope
HEIScope HEI-VM-BS-10 High Resolution LCD Zoom Inspection Microscope System includes a Video Zoom microscope with a 10" viewable monitor(Native resolution: 1024 × 768). Dot pitch: 0.297mm, Contrast: 300:1, Viewing Angle: about 150°, Response Time: ≤25ms, Brightness: 250cd/m2, Video Output: BNC (PAL / NTSC). Total magnification. ( 10" = 3.2x - 198x). The HEIScope HEI-VM-LCD-10 has a zoom body of 0.7-4.5x with detents with a zoom ratio of 1:6.5. Optional objective lens are available. Built in LED ring light with adjustable brightness and laser pointer for accurate inspection of small parts.
- HEIScope HEI-VM-BS-10 LCD Video Microscope (Total magnification: (10" LCD 3.2x - 198x)
- 10.4" Viewable LCD Monitor (16MS high definition color)
- Purchase in Packages with selected stand.
- LED ring light: DC 12V, 0.5mA with adjustable brightness
- Viewing Angle: about 150° (Adjustable)
- Optional objective lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X
- Video Output: BNC (PAL / NTSC)
- Laser pointer: DC 5V
- Used for teaching, scientific research, electronic testing and more.
- One year optics warranty - One year on Monitor.
- Power Supply: AC 85-265V, 50/60Hz
| In This Package: | ||||||
|
HEIScope HEI-VM-BS-10 LCD Monitor Specifications
| Viewable: 10.4" | Viewing Angle: about 150° |
| 1024 x 768 for 10.4 inch monitor | Response Time:≤25ms |
| Dot pitch: 0.297mm | Brightness: 300cd/m 2 for 10 inch monitor |
| Contrast: 350:1 for 10 inch monitor | Video Output: BNC (PAL / NTSC) |
HEIScope HEI-VM-BS-10 LCD Microscope Optic Specifications
|
HEIScope HEI-VM-BS-10 LCD Microscope Accessories
|
HEIScope HEI-VM-BS-10 LCD Microscope Auxiliary Lens Magnification
| HEIScope HEI-VM-TS-10 Zoom Range Magnification with 10 inch Monitor | W.D.(mm) | |||||||||
| 0.7 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | ||
| 0.3x | 4.6x | 6.3x | 9.5x | 12.7x | 15.8x | 19.0x | 22.2x | 25.3x | 29.7x | 331 |
| 0.5x | 7.7x | 10.6x | 15.9x | 21.1x | 26.4x | 31.7x | 37.0x | 42.2x | 49.5x | 198 |
| 0.75x | 11.6x | 15.8x | 23.8x | 31.7x | 39.6 | 47.5x | 55.4x | 63.3x | 74.3x | 131 |
| 1.0x Standard | 15.4x | 21.1x | 31.7x | 42.2x | 52.8x | 63.3x | 73.9x | 84.4x | 99.1x | 96 |
| 1.5x | 23.1x | 31.7x | 47.6x | 63.3x | 79.2x | 95.0x | 110.9x | 126.6x | 148.6x | 63 |
| 2.0x | 30.8x | 42.2x | 63.4x | 84.4x | 105.6x | 126.6x | 147.8x | 168.8x | 198.1x | 46 |
HEIScope HEI-VM-BS-10 LCD Microscope Optical Data
|
Coupler |
0.5x |
||
| Auxiliary Lens | Magnification | FOV mm | Working Distance |
| 0.3x | 3.3x~22x | 58.8~8.9 | 331mm (13") |
| 0.5x | 6x~37x | 35.2~5.3 | 198mm (7.8") |
| 0.75x | 8x~55x | 23.5~3.6 | 131mm (5.15") |
| 1.0x | 11x~74x | 17.6~2.7 | 96mm (3.8") |
| 1.5x | 17x~110x | 11.8~1.8 | 63mm (2.5") |
| 2.0x | 22x~147x | 8.8~1.3 | 46mm (1.8") |
Purchase a HEIScope HEI-VM-BS-10 LCD Microscope with Boom Stand sold by Howard Electronics Today!
