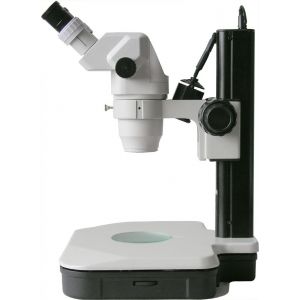

HEI-MP2-HF includes a Stereo Zoom binocular head, 10x eyepieces, eye guards, dual illuminated track stand (top halogen, lower fluorescent), 76mm focus rack with fine focus, ring adapter, 0.5x auxiliary lens, and ESD safe microscope cover. Magnification of 3.4x - 22.5x with WD of 7"
- HEI Stereo Zoom Microscope (w/10x eyepieces and ring light adapter) Standard 6.7x-45x magnification
- 0.5 Auxiliary Lens (for reducing magnification to 3.4x - 22.5x)
- Dual illuminated track stand (top halogen, lower fluorescent)
- 76mm focus rack with fine focus Weight 6.6 lbs
- Dual diopter adjustments
- Focusable eyepieces
- Can be used for teaching, scientific research, electronic testing and more.
- 5 year warranty!
|
||||||||
Total magnification = auxiliary lens x objective x eyepieces
Optical Specifications:
| Objective | 0.3X | 0.4X |
0.5X |
0.75X | 1X | 1.5X | 2.0X | |
| Working Distance (mm) | 287mm |
217mm |
177mm |
117mm |
100mm |
47mm |
26mm |
|
| 10X | Mag. | 2.0x-13.5x | 2.7x-18.0x | 3.4x-22.5x | 5.0x-33.8x | 6.7x-45.0x | 10.1x-67.5x |
13.4x-90.0x |
|
|
FOV | 109.5-16.3 | 82.1-12.2 | 65.7-9.8 |
43.8-6.5 |
32.8-4.9 |
21.9-3.3 |
16.4-2.4 |
| 15X | Mag. |
3.0x-20.3x |
4.0x-27.0x |
5.0x-33.8x |
7.5x-50.6x | 10.1x-67.5x | 15.1x-101.3x | 20.1x-135x |
|
|
FOV | 79.6-11.9 |
59.7-8.9 |
47.8-7.1 |
31.8-4.7 |
23.9-3.6 |
15.9-2.4 |
11.9-1.8 |
| 20X | Mag. |
4.0x-27.0x |
5.4x-36.0x |
6.7x-45.0x |
10.1x-67.5x |
13.4x-90.0x |
20.1x-135.0x |
26.8x-180x |
|
|
FOV | 59.7-8.9 | 44.8-6.7 | 35.8-5.3 | 23.9-3.6 | 17.9-2.7 | 11.9-1.8 | 9-1.3 |
| 25X | Mag. | 5.0x-33.8x | 6.7x-45.0x | 8.4x-56.3x | 12.6x-84.4x | 16.8-112.5x | 25.1x-168.8x | 33.5x-225x |
|
|
FOV | 44.8-6.7 | 33.6-5.0 | 26.9-4.0 | 17.9-2.7 | 13.4-2.0 | 9.0-1.3 | 6.7-1.0 |
| 30X | Mag. | 6x-40.5x | 8x-54x | 10x-67.5x | 15x-101x | 20x-135x | 30x-202x | 40x-270x |
|
|
FOV | 34.8-5.1 | 26.1-3.87 | 20.9-3.1 | 13.9-2.1 | 10.4-1.55 | 6.9-1 | 5.2-7.5 |
