HEI-MZC-0.75X HEI Scope 0.75X Zoom Coupler for Micro Zoom inspection station MZ02016141

List price: $165.06
$95.00
You save: $70.06 (42%)
HEI-MZC-0.75X
+

HEIScope's MZ CCD Coupler standard C-Mount design is suitable to 1/3" CCD Camera, in which three magnifications, i.e. 1.0X, 1.5X, 2.0X adopting with "far-take" optics structure that greatly shortened the length of the system.

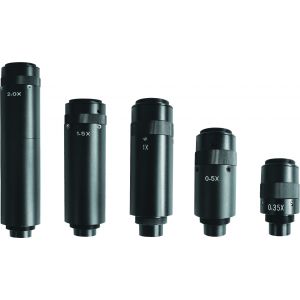

Optional Couplers: HEI-MZC-0.38X, HEI-MZC-0.5X, HEI-MZC-0.75X, HEI-MZC-1.0X, HEI-MZC-1.5X, HEI-MZC-2.0X

Coupler 0.38X 0.5X 0.75X 1.0X 1.5X 2.0X
Focus Distance 67mm 90mm 135mm 180mm 270mm 360mm
Optical Length Approx. 76mm 97mm 103mm 130mm 189mm 252mm
The FOV angle of the objective 7.6° 7.6° 7.6° 7.6° 7.6°

7.6°

The FOV diameter of the image side≥ 6.1mm 6.1mm 6.1mm 6.1mm 6.1mm 6.1mm
Vendors :
HEIScope
