Dia. 32mm; With a 5/8"(15.875mm) end adapter; Length of arbor: 11"(280mm). SA02051102
Arbor Length | 195mm |
Arbor Diameter | Φ32mm |
Arbor Adapter Type | Fixed |
Arbor Adapter Mounting Size | Φ15.875mm (Φ0.625″) |
Surface Treatment | Polished Chrome |
Material | Metal |
Color | White |
Net Weight | 0.93kg (2.05lbs) |

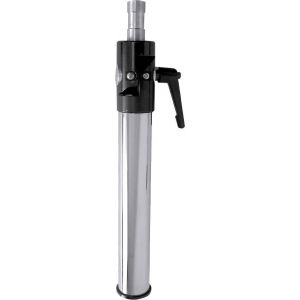

Arbor
Arbors are designed for extending working range of boom stands, and can meet microscope requirements of different direction and working distance.
|
HEI-ABT-32 | HEI-AB-32 | HEI-ABT-25 | HEI-AB-25 |
Name | Tiltable Arbor | Arbor | Tiltable Arbor | Arbor |
Diameter of Arbor | 32mm | 25mm | ||
Length of Arbor | 11"(280mm) | 9.65" (245mm) | ||
Remarks |
With a 5/8" (15.875mm) tilting end adapter |
With a 5/8" (15.875mm) end adapter |
With a 5/8" (15.875mm) tilting end adapter |
With a 5/8" (15.875mm) end adapter |
