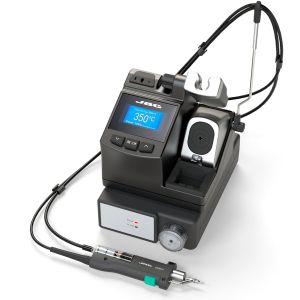

CS-1E JBC Tools Micro Desoldering Station with Electric Pump

JBC Tools CS-1E is a Micro Desoldering Station with an electric pump and JBC Advanced system for precision electronic applications.

JBC Tools CS-1E Series Micro Desoldering Station with Electric Pump

JBC Tools CS-1E Micro Desoldering Station works with the JBC exclusive heating system and the intelligent sleep & hibernation features. Using the menu you can personalize over 20 parameters to help manage the soldering process. JBC Tools CS-1E incorporates a USB connector (type B) to update station software and create graphs.

JBC Tools CS-1E Micro Desoldering Station

The CS-1E JBC Tools Micro Desoldering Station with Electric Pump has a complete cleaning system with an antisplash membrane to keep the work area clean. The JBC Tools CS-1E uses the integrated wiper to remove excess solder from the tip. JBC Tools CS-1E Micro Desoldering Station is equipped with the MS-A Electric Pump and works with the comfortable DS360 Micro Desoldering Iron and C360 Cartridge.

CS-1E JBC Tools Micro Desoldering Station Includes

Control Unit: CS with Tip Cleaning System, and MS-A Electric Desoldering Pump

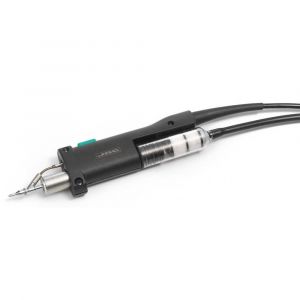

Tools: DS360-A Micro Desoldering Iron
Cartridges: C360-004
Consumable: S0354, CL6210

JBC Tools CS-1E Micro Desoldering Station Specifications

Weight 2.8 kg (6.2 lb) (station)
Size 150 x 175 x 145 mm (station)
Voltage (AC) 230V / 120V / 100V
Input Fuse 1A (230V), 2A (120V and 100V)
Output Peak Power 40W / 23.5V
Temperature selection 180-450 ºC / 356-840 ºF
Ambient operating temp. 10-40 ºC / 50-104 ºF
Tip to ground resistance <2 ohms
Vacuum 75% / 570 mmHg / 22.4 inHg
Flow rate 9 SLPM
USB connector station-PC
ESD Safe
Package weight 5.1 kg (11.3 lb)
Package dimensions 330 x 260 x 305 mm
